Light with intensity adjustment function
The intensity of the LED handpiece can be adjusted in three levels according to the practitioner's preference or in response to the environment of the clinic.
Selectable water flow level
In order to effectively cool a tip, the water flow can be selected from 5 levels to match the type of tip and the situation of the oral cavity, with a maximum flow of 75 ml per minute. Effective water flow reduces heat buildup in the tip of the tip, preventing thermal damage to osteocytes.
GEAR Key
Use to set gear ratio of the attached handpiece before use.
(20:1,1:1,1:2,1:3,1:5)
MEMORY Key
You can save settings to program memory according to the details of the procedure or the type of tip used. The set program can easily be activated with the program button, eliminating the need for annoying operations.
Advanced Handpiece Calibration
Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.
SPEED Key
Press [+] Key to increase, and [-] Key to decrease speed.
TORQUE Key
Press [+] Key to increase and [-] Key to decrease torque range.
PROGRAM Key
You can select saved program numbers from 1 to 8.
Advanced Handpiece Calibration
Use NSK Surgic Pro AHC to calibrate micromotor and handpiece to the rotational resistance of each individual handpiece prior to operation. AHC guarantees extremely accurate speed and torque for maximum safety during operation.
USB memory & Data
Treatment data can be accessed and downloaded using a USB memory stick.
You do not need to install any specific software as the data can be displayed with general-use software which can display csv or bitmap files.
*memory stick isn't included.
Large LCD panel with backlight
The highly-visible backlit LCD panel and intuitive operations through icon buttons assists in carrying out safe, and accurate procedures.
High-performance irrigation pump
This product is designed for easy, accurate, and speedy attachment of irrigation tubes. The highly-reliable construction ensures that you don't have to worry about malfunctions during a procedures. The noise level of the pump during operation is also reduced for a quieter environment while carrying out procedures.
FWD / REV Key
Use to select the direction of rotation. Press this Key once to change the rotational direction.

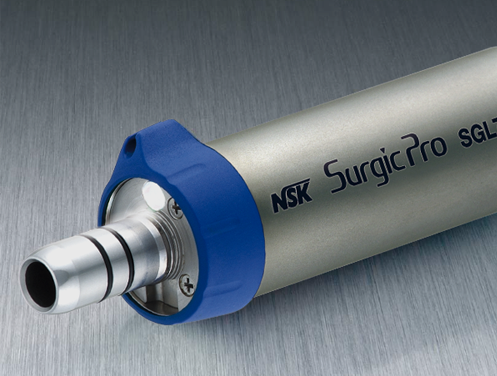

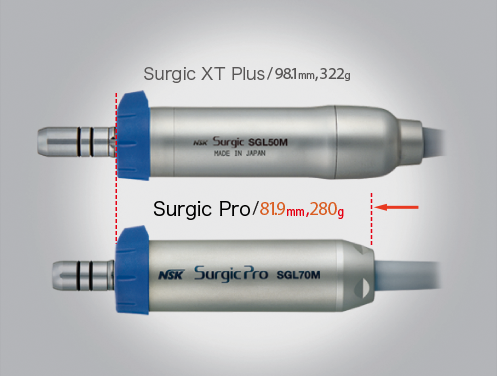

Ce nouveau micromoteur chirurgical présente une taille réduite de 16,2 mm et un poids allégé de 42g par rapport au micromoteur chirurgical lumière conventionnel.
Grâce à l'éclairage LED, les praticiens peuvent se concentrer plus facilement sur la zone de traitement et ainsi offrir une chirurgie précise
Visibilité : Les LED génèrent une lumière de qualité équivalente à la lumière du jour, ce qui procure une meilleure visibilité par rapport à une lampe halogène.
Longévité : Les LED ont une durée de vie plus longue que les ampoules halogènes.

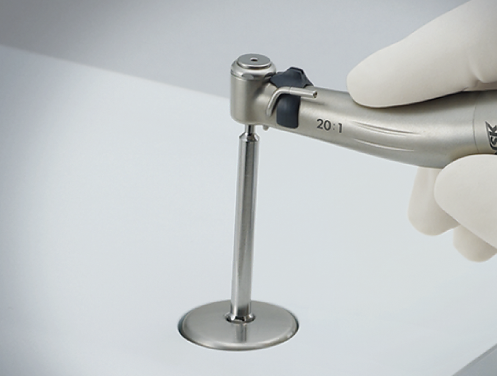

Le système d'étalonnage AHC de NSK calibre individuellement le micromoteur et la résistance de rotation de chaque pièce à main avant utilisation. L'AHC garantit une extrême précision du couple et de la vitesse pour une sécurité maximale durant l'intervention.

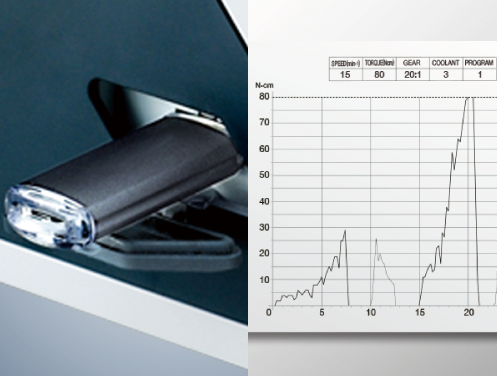

Les données de traitement sont accessibles et téléchargeables sur une clé USB.*
Les données peuvent être affichées avec un logiciel courant en tant que fichier .csv
*Clé USB non fournie

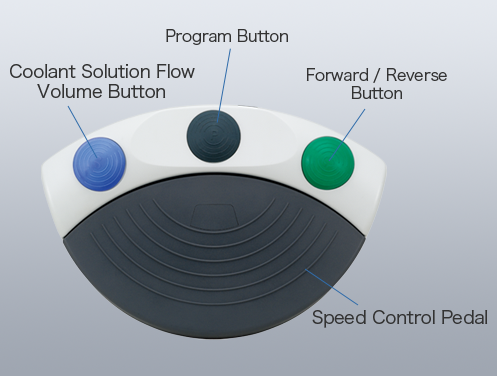

La pédale est facile d'emploi et permet un contrôle parfait sans perturbation pendant la réalisation d'opérations chirurgicales délicates. Elle a été conçue pour empêcher l'activation accidentelle du micromoteur et est certifiée selon la norme IPX8.

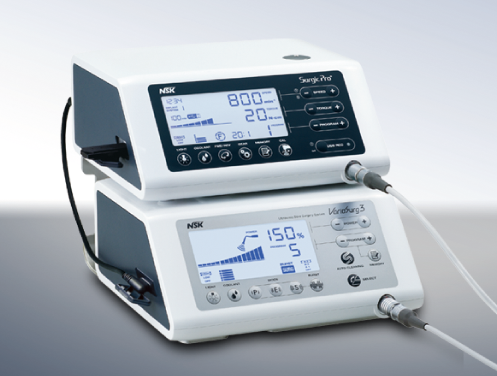

Vous pouvez opérer avec les 2 moteurs, car ils peuvent être contrôlés par la même pédale grâce au câble SG link. Les moteurs peuvent être superposés pour gagner de la place.
